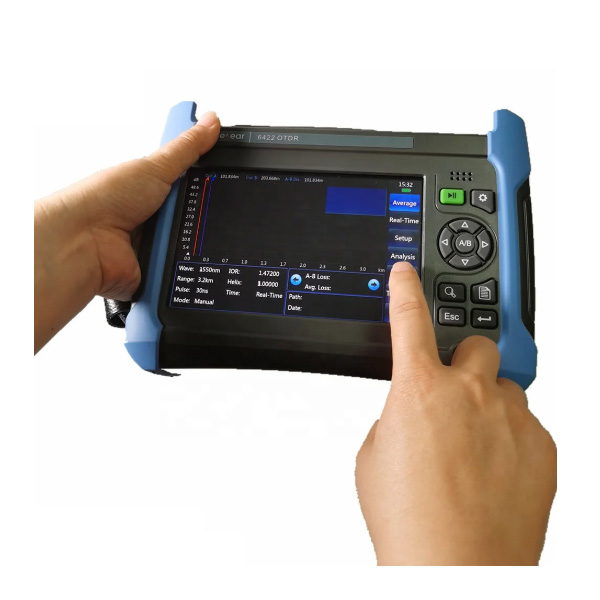

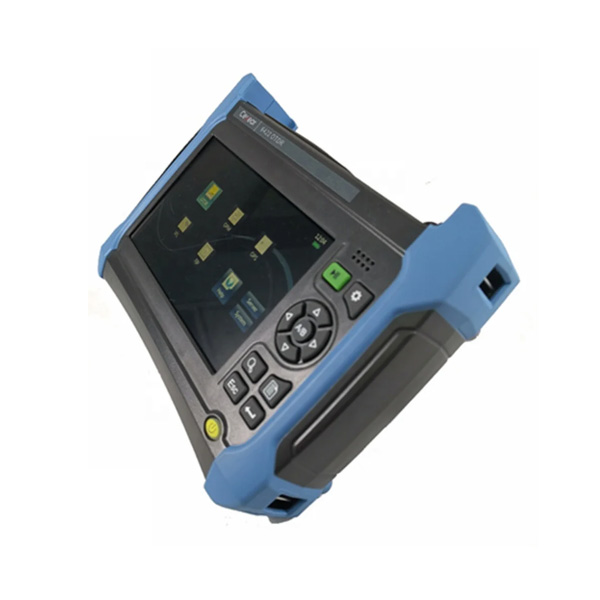

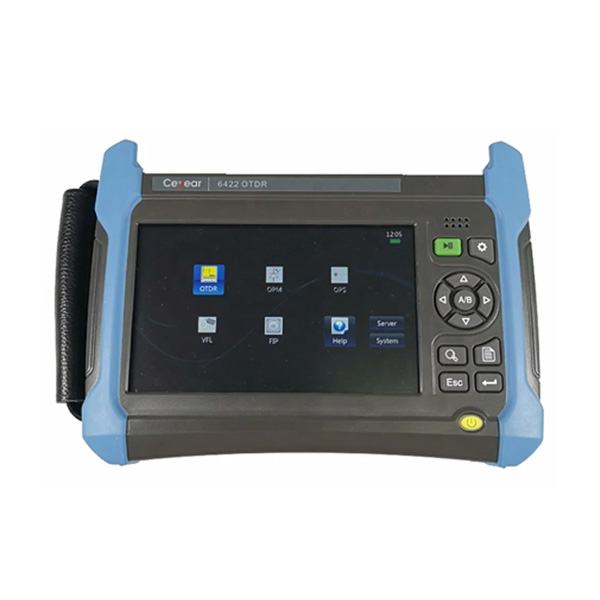

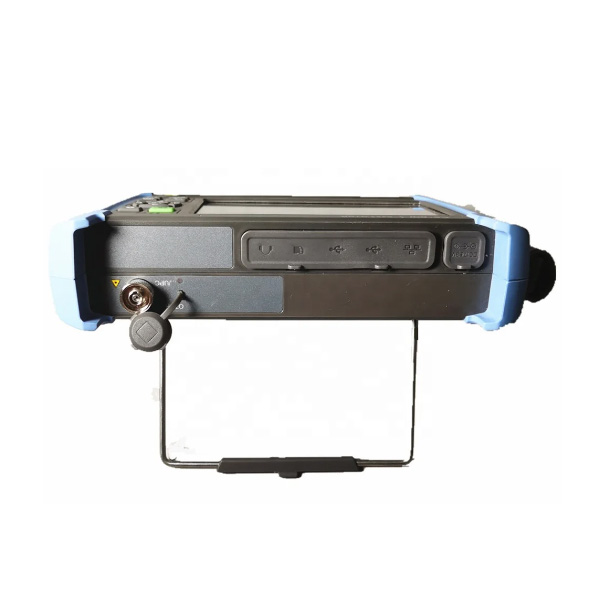

Ceyear SM MM OTDR 6422-4001 Quad OTDR fiber reflectometer 850/1300/1310/1550nm 37/35/26/34dB

Features A maximum dynamic range of 50dB, and 256k data sampling points; Online test of PON network; Integrated mono-mode and multi-mode test; Automatic monitoring of optical communication signals; File formats of Bellcore GR196 and SR-4731 supported.   Specification Main OTDR Modules  2201 Center wavelength 850/1300nm ±20nm Type of optical fiber MMF   Dynamic Range1 26 / 34dB   Distance Measurement Accuracy ±(0.75 sample interval 0.0025% × range)(excluding the refractivity placement error) (m) Ranging resolution  0.05, 0.1, 0.2, 0.5, 1, 2, 4, 8, 16 and 32m Test range 0.4, 0.8, 1.6, 3.2, 6.4, 16, 32, 64, 128, 256 and 512km (mono-mode); 0.4, 0.8, 1.6, 3.2, 6.4, 16 and 32km (850nm multi-mode) Testing PW 3, 5, 10, 30, 80, 160, 320, 640, 1280, 5120, 10240 and 20480ns 3, 5, 10, 30, 80, 160, 320, 640 and 1280ns(850nm multi-mode) Maximum number of sampling points 256k Linearity 0.03dB/dB Loss resolution 0.001dB Refractivity setting range 1.00000 ~ 1.99999(step: 0.00001) Display 800×480, 7-inch TFT color LCD (a capacitive touch screen in the standard configuration, and a resistive touch screen optional) Optical output interface FC/UPC (standard configuration, with LC/UPC, SC/UPC and ST/UPC optional) Interface language Multi languages optional Interface USB, Micro-USB, 10M/100M Ethernet, earphone and Micro SD Power Supply AC/DC adapter: AC100V~240V, 50/60Hz and 1.5A DC: 17V±3V(2A) Internal Li battery: 11.1V, 6800mAh, battery operating time: 8h Maximum power consumption 10W Dimensions 252mm(W)×180mm (H)×55mm (D) Weight About 1.8kg Environmental adaptability Operating temperature: -10℃~ 50℃ (battery charging: 5℃~40℃) Storage temperature: -40℃~ 70℃ (battery: -20℃~60℃) RH: 5% ~95%, no condensation
