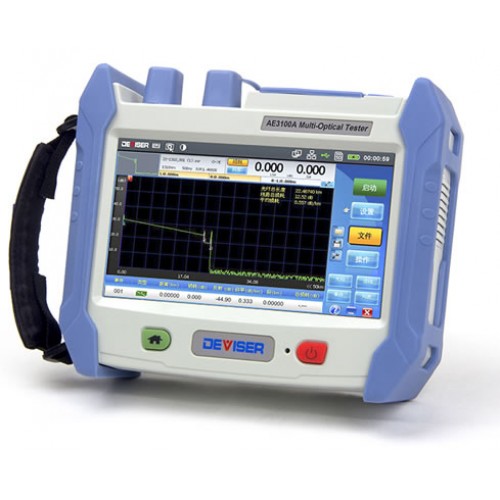

Deviser AE3100A, 30/28 dB Single Mode OTDR, Wavelength 1310/1550 nm

Dimensions: 37x32x14cm Weight: 3.55Kg Deviser AE3100A Single Mode OTDR Instrument’s 4th generation OTDR, field-portable, a giant leap forward in fiber-optic measurement performance and utility. Brand Deviser Dynamic Range 30/28 dB OTDR Type Dark Fiber Testing Display Size 5 inch Display Type Outdoor-Enhanced, 800×480 TFT Operation Access Touchscreen Internal Data Storage 10,000 OTDR Traces Interfaces 2x USB2.0 Ports, 1x RJ-45 and 1x TF Card Port(64GB max). Power Supply AC/DC Adapter (O/P 12V DC 25W) Battery Type Rechargeable Lithium Polymer Battery Backup 8 Hrs Application type Last Mile-Access Links (CATV and Telecom) Hardware type Non-Modular Wavelength 1310/1550 nm Firmware Type Linux Event Dead Zone 1.5 m Attenuation Dead Zone 6 meter Sampling Points Up to 2,56,000 points Pulse Width 3 ns to 20 us
