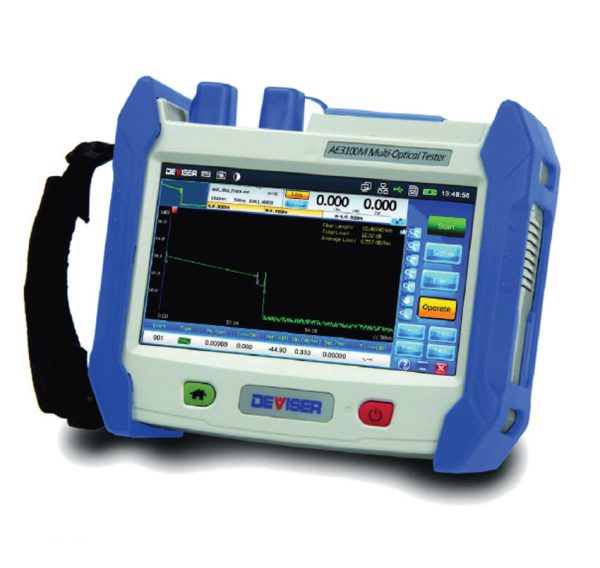

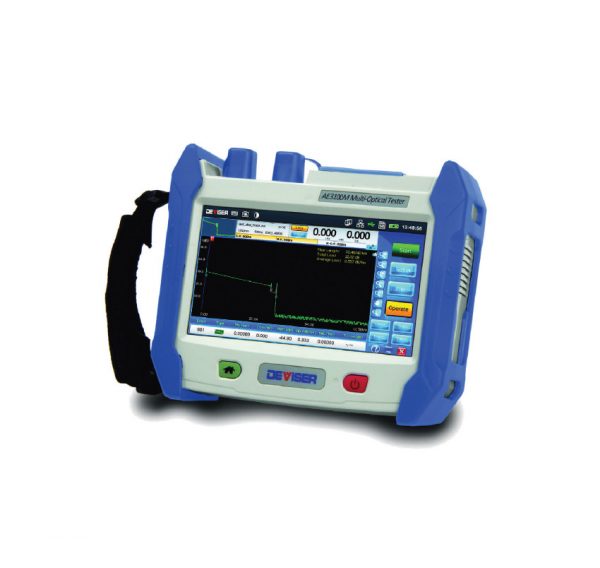

Dimensions: 37x32x14cm Weight: 3.55Kg Applications Construction, deployment, maintenance, and authentication of the following networks: • Local Area Networks • Data Centres • Long Haul Networks • Metropolitan Area Networks (MAN) • Process Plants and Industrial Sites Overview From Deviser Instruments’ 4th generation of OTDR, the fieldportable AE3100 marks a giant leap forward in fiber-optic measurement performance and utility. The new M series adds multi-mode testing capabilities up to 4 wavelengths and 43dB dynamic range. Featuring intuitive touchscreen controls and real-time data analysis, the AE3100 is the ideal test instrument for constructing, deploying, maintaining, and authenticating FTTx networks – as well as verifying access networks. Multiple models and configuration options ensure your unique measurement needs are covered. FiberPath™ FiberPath simplifies the interpretation of OTDR traces by identifying link elements and displaying the link map in an easy-to-understand format. Experienced and inexperienced technicians alike will appreciate the simplified display. Remote Control In conjunction with the SYNCOR PC-based asset and test data management system, users can issue test orders and collect measurement data remotely from AE3100 units deployed to the field. OTDR This high-performing OTDR supports up to four wavelengths and is the ideal solution for testing the fiber in RFoG and FTTx applications. The OTDR can identify and locate link impairments and measure the insertion loss by LSA, 2Pt and 4Pt methods. The unit also measures optical return loss (ORL). display. Optical Measurements The AE3100 includes a suite of optical measurement tools, including a power meter, laser source, and visual fault locator (shown below). The unit is available in numerous wavelength configurations for ensuring proper levels in networks such as RFoG and FTTx. Specifications Wavelength Accuracy: ± 20nm Event Dead Zone: Multi-mode ≤ 0.8m Attenuation Dead Zone: Multi-mode ≤ 5m Distance Range: Single-mode 100m, 400m, 1.5km, 3km, 6km, 12km, 25km, 50km, 100km, 200km, 400km Multi-mode 100m, 400m, 1.5km, 3km, 6km, 12km, 25km, 50km Pulse Width: Single-mode 3ns, 5ns, 10 ns, 30 ns, 50 ns, 100 ns, 200 ns, 500 ns, 1μs, 2μs, 5μs, 10μs, 20μs Multi-mode 5ns, 10ns, 30ns, 50ns, 100ns, 200ns, 500 ns, 1μs Sampling Resolution: 5cm ~ 6.4m Sampling Points: 256,000 max Distance Accuracy (m): ± (0.75m 0.005% x Distance Sampling Resolution) Group Refractive Index: 1.300000 ~ 1.700000 Loss Threshold: 0.01dB Loss Resolution: 0.001 dB Refresh Rate: 4 fields/second Reflectance Accuracy: ± 2dB Measurement Time Range: 5s ~ 5min, real time Data Storage: >10,000 OTDR traces, exportable to USB or PC Calibration Period: Valid for 1 year Quality Compliance: Complies with ISO-9001:2015
