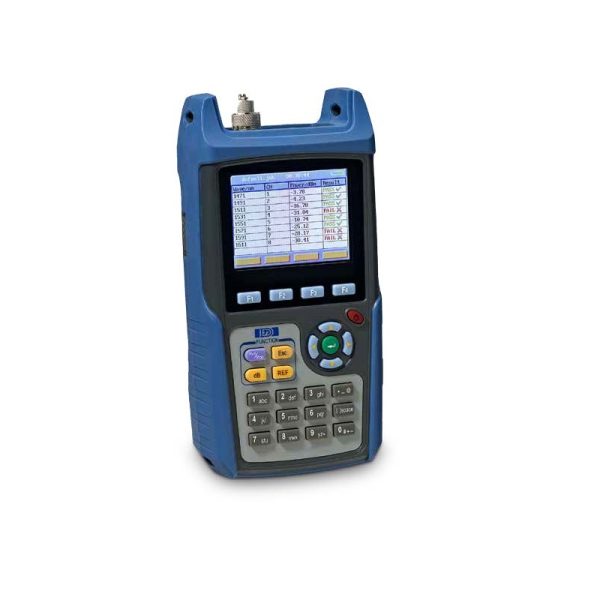

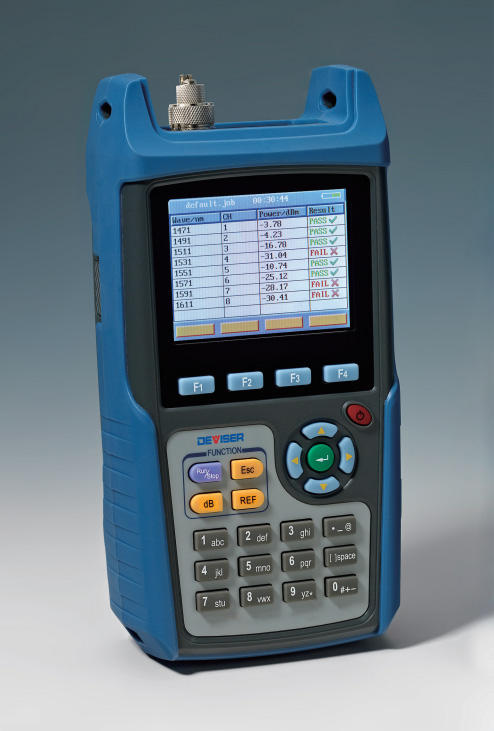

Overview The AE600 CWDM Channel Analyzer is a handheld optical tester for measuring the power and wavelength of CWDM systems. Compared to the AE500, this analyzer can simultaneously verify up to 18 CWDM channels within wavelengths of 1271 – 1611nm. Measurement data can be displayed in either graphical or list format. Specifications Wavelengths: 1271, 1291, 1311, 1331, 1351, 1371, 1391, 1411, 1431, 1451, 1471, 1491, 1511, 1531, 1551, 1571, 1591, 1611nm Channels: 18 Input Range: -60 ~ 10dBm Units: dBm / dB / mW Uncertainty: ± 0.5dB Measurement Time: ≤ 1.5s Data Storage: 1,000 groups Interface: Mini-USB, USB Display: 3.5″ 16M color LCD Optical Adapter: UPC, FC (default); APC, SC, LC (optional) Power Supply: 7.4V / 2.7 Ah lithium battery; 15V adapter Operation Temperature: -5 ~ 60°C Storage Temperature: -20 ~ 70°C Dimensions: 8.7″ x 4.3″ x 2.2″ (222mm x 108mm x 57mm) Weight: 1.7 lbs (790g) (w/o battery)
