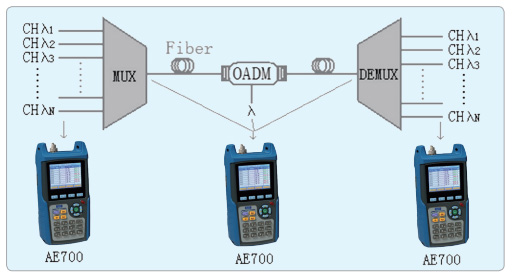

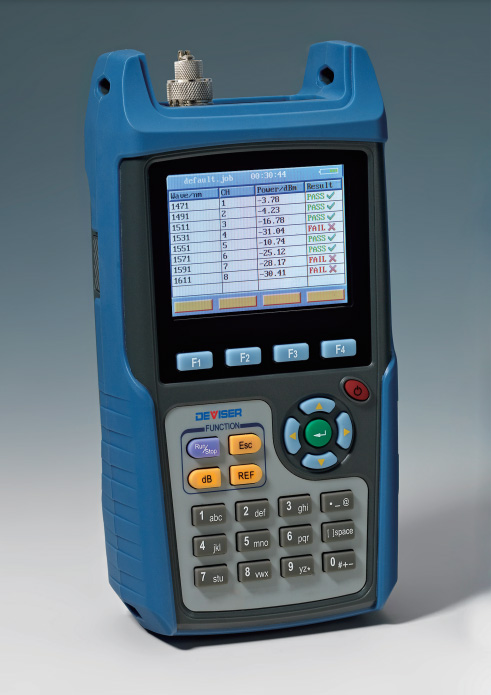

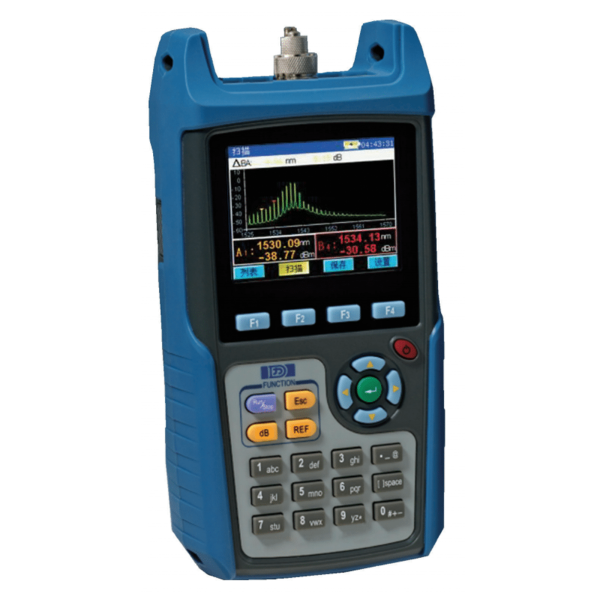

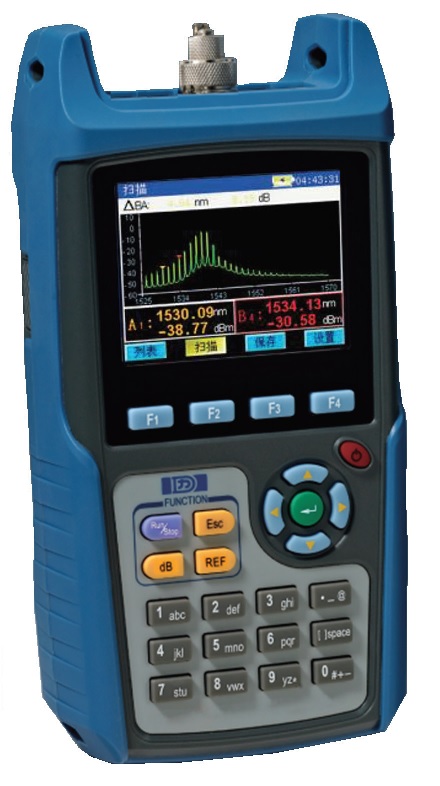

Overview The AE700 is a DWDM Channel Analyzer for the installation and maintenance of DWDM systems. This capable handheld unit measures wavelengths in the C-band (1527 ~ 1567 nm) or L-band (1570 ~ 1610 nm), with additional support for optical signal to ratio (OSNR) – essential for verifying signal quality. Measurements can be displayed in graphical and list formats. Specifications Spectral Scanning Wavelength Range: 1527 ~ 1567nm (AE700A); 1570 ~ 1610nm (AE700B) Resolution: < 0.3 Uncertainty: ± 0.08nm Repeatability: ± 0.01nm Power Measurement Dynamic Range: -10 ~ -40dB per channel (max input power 3dBm) Absolute Uncertainty: ± 0.5dB (CW) ± 0.7dB (<10 Gbps) ± 1.0dB (40/100 Gbps) Repeatability: ± 0.2dB (CW) ± 0.2dB (<10 Gbps) ± 0.5dB (40/100 Gbps) OSNR Range: > 35dB General Measurement Time: < 1.5s Data Storage: 400 groups Display: 3.5″ 16M color LCD Interface: USB Optical Adapter: UPC, FC (default); APC, SC, LC (optional) Power Supply: 100 ~ 240V input; 15V output Operation Temperature: -5 ~ 60°C Storage Temperature: -20 ~ 70°C Dimensions: 8.7″ x 4.3″ x 2.2″ (222mm x 108mm x 57mm) Weight: 1.7 lbs (790g) (w/o battery)
