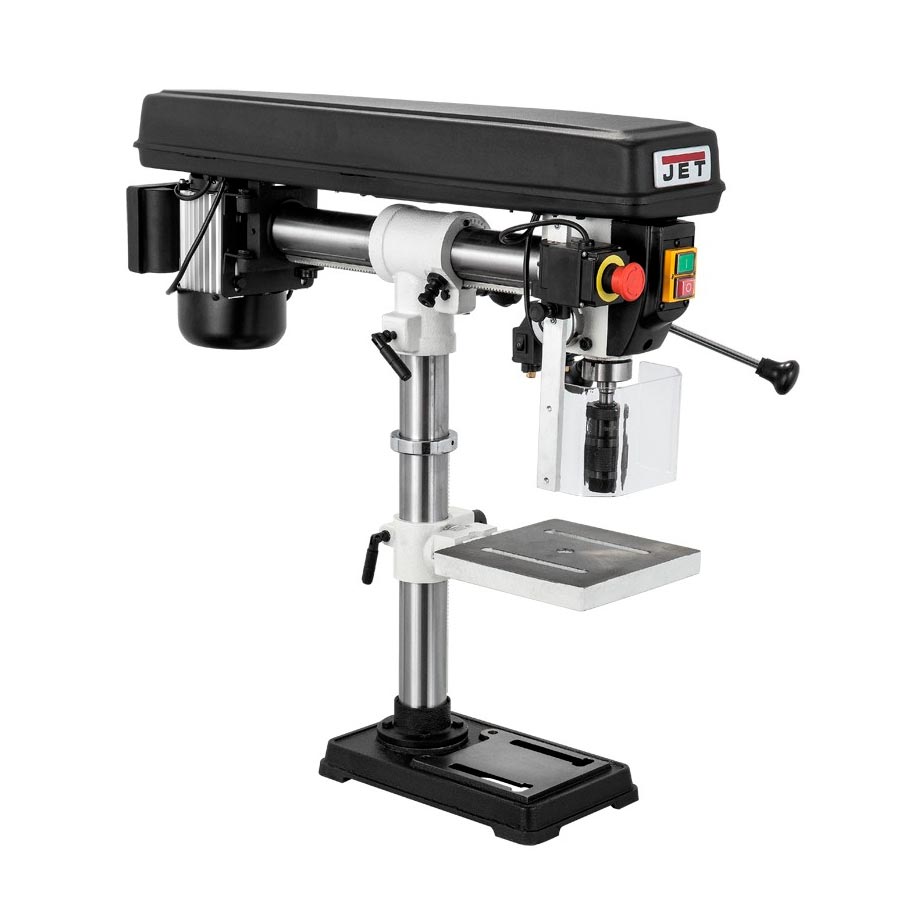

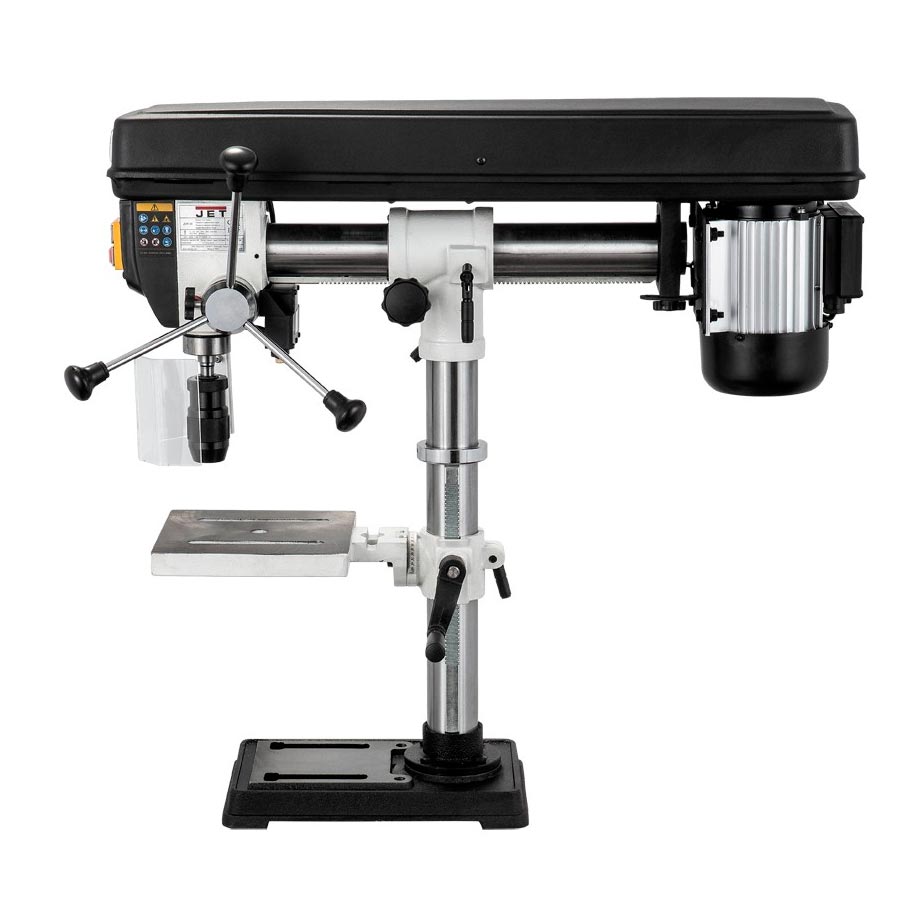

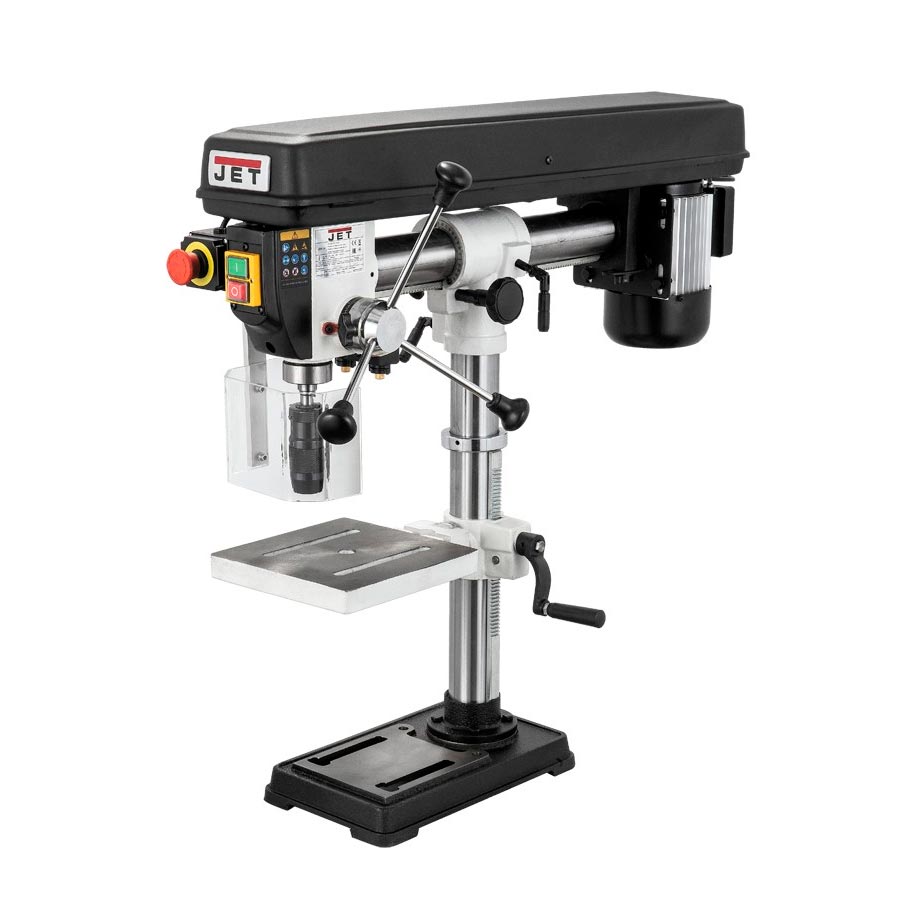

Jet JDR-34 Radial Drill Press

Description Jet JDR-34 is compact and well featured Radial Drill Press equipped with 600W motor, Xacta-X laser and 0-90° tilting cast iron table. With it’s horizontally adjustable drilling head you can adjust the throat depth from 155 up to 410 mm for variety of projects. Drilling head can be tilted 0-90° to the right or 0-45° to the left and with the quick stop you can set the drilling head back to 0° without the need of adjustments. The cast iron table tilts up to 90° in both directions to provide exceptional versatility of use. Featuring 6-speed settings from 500 to 2500 rpm you can work with variety of different materials like wood, aluminum and steel. By changing the belt positions you can set the correct speed in 1 minute. Features: Xacta-X laser Adjustable drilling depth limiter Cast iron 220 x 230 mm work table Table tilting 0-90° Height adjustment of the work table by means of a rotating handle Adjustment of the inclination of the working table Rotating work table Keyless drill chuck Technical details Motor 600W S6 40% 350W S1 100% Voltage 230V (1-Phase) Speed 500 – 2500rpm Drilling capacity 16mm steel Spindle travel 80mm Throat depth 155 – 410mm Spindle bore MK-2 Spindle to table 235mm Spindle to base 350mm Table size 220 x 230mm Table tilting 0-90° Sound power 65dB(A) Dimensions 830 x 320 x 760mm Weight 42kg Warranty 2 Years ? 1 Year in professional use
