(SDO-SHT) Stainless Steel 316 Grade Heavy Standoff Projection w/ Sheet for 3/8”~5/8” or 1/2″ ~ 1″ Glass Railing

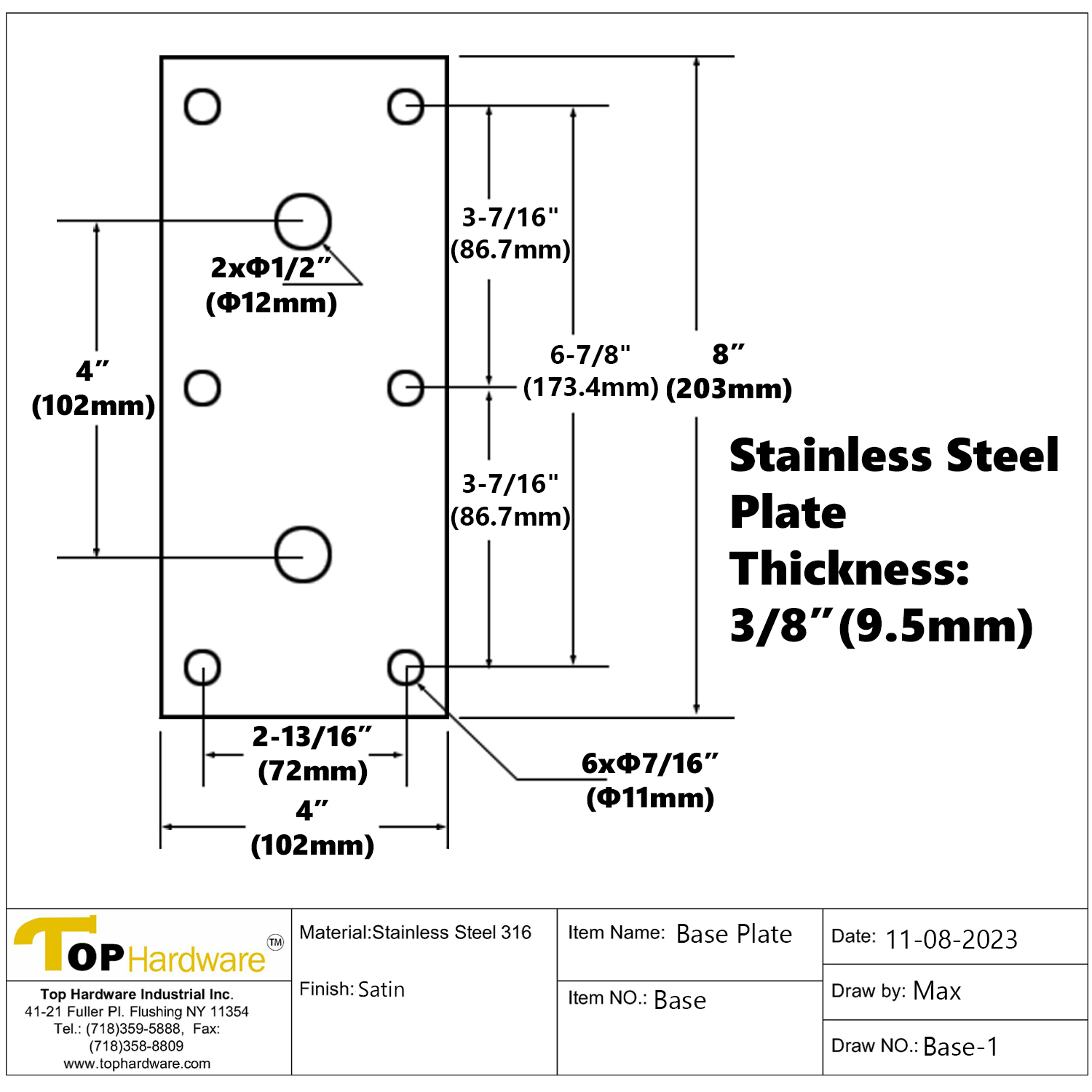

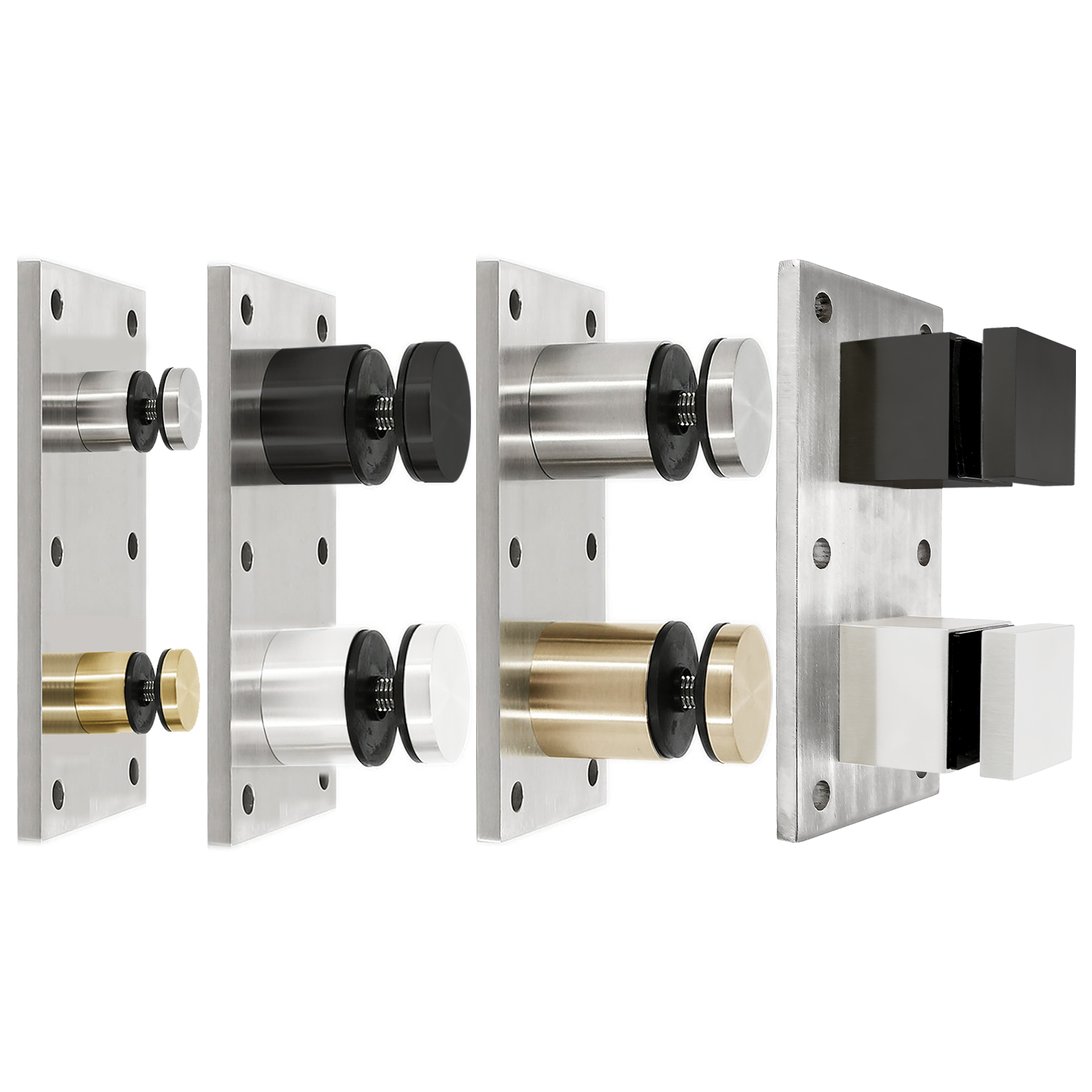

Description Stainless steel 316 grade Finish: Satin Brushed/Chrome Mirror/Matte Black/Satin Gold Two standoffs with one stainless steel sheet Standoff: SO-025RD (1-1/2 inches diameter and 1-1/2 inches length with 3/8 inch bolt holes, bolts come with the package)/SO-030RD(2 inches diameter and 1-3/16 inches length with 1/2 inch bolt holes, bolts come with the package)/SO-050RD(2 inches diameter and 1-3/4 inches length with 1/2 inch bolt holes, bolts come with the package)/SO-050SQ(2″ x 2″ dimension and 1-3/4 inches length with 1/2 inch bolt holes, bolts come with the package) Stainless Steel Sheet: 8″ x 4″ x 3/8″ Performance Requirements:  Support distributed load of 50 pounds per linear foot (0.73kN/M), applied horizontally at right angles in any direction to the top/grab rail. Support concentrated horizontal load of 200 pounds (0.89kN), applied in any direction at any point along top/grab rail. 50 lbs (0.22kN) on 1 sf (0.093m2) perpendicular to guard at any location Wind loads 25 psf or as otherwise specified.  These loads need not to be assumed to act concurrently. Maximum deflection at top of glass is height/24.  For use with 3/8”~5/8” or 1/2″ ~ 1″ tempered monolithic or tempered laminated glass Search SSWECH for a wrench Cat. No.: SDO-SHT View more Standoff
