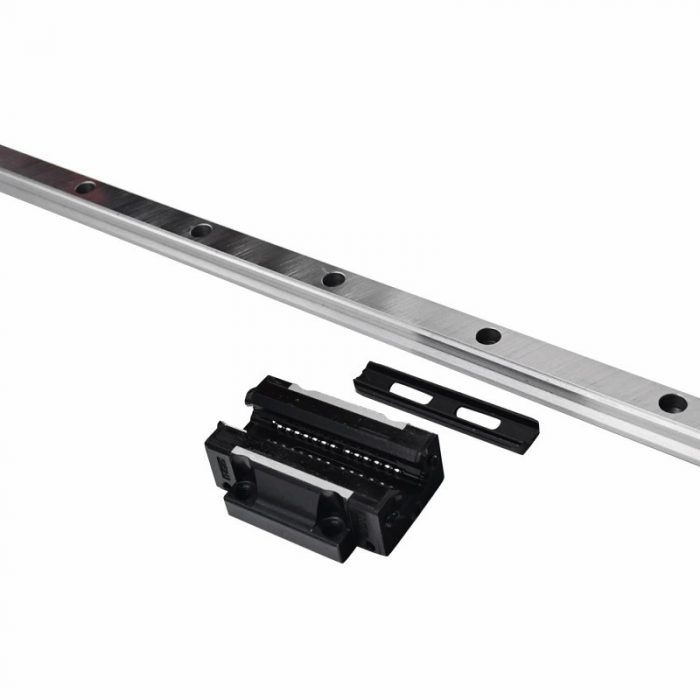

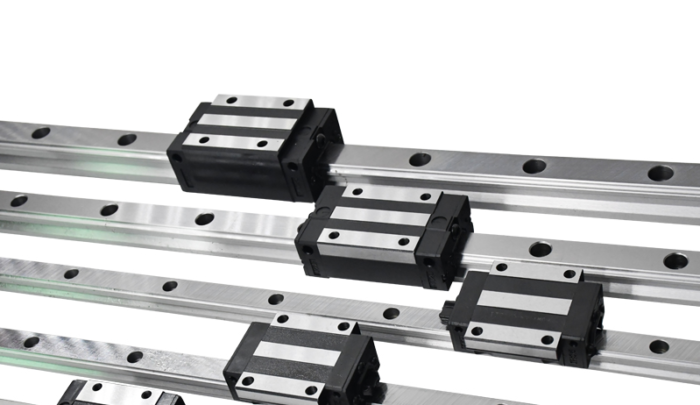

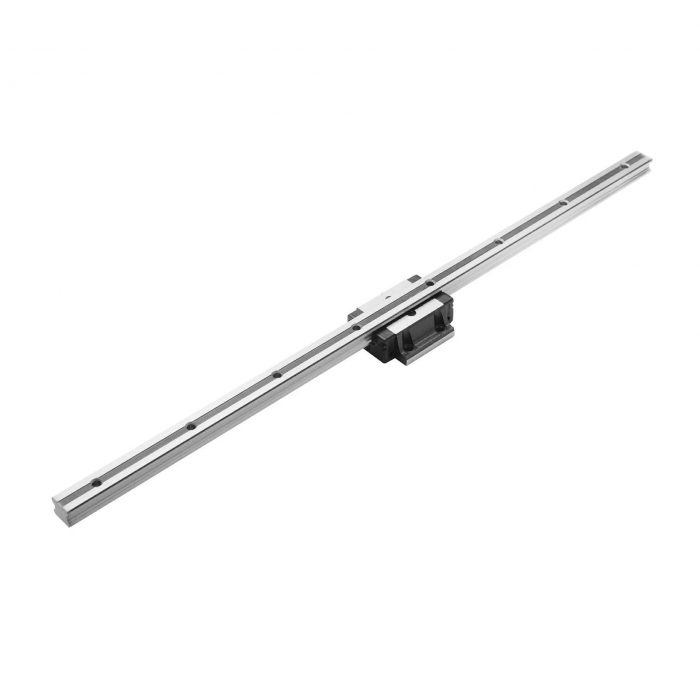

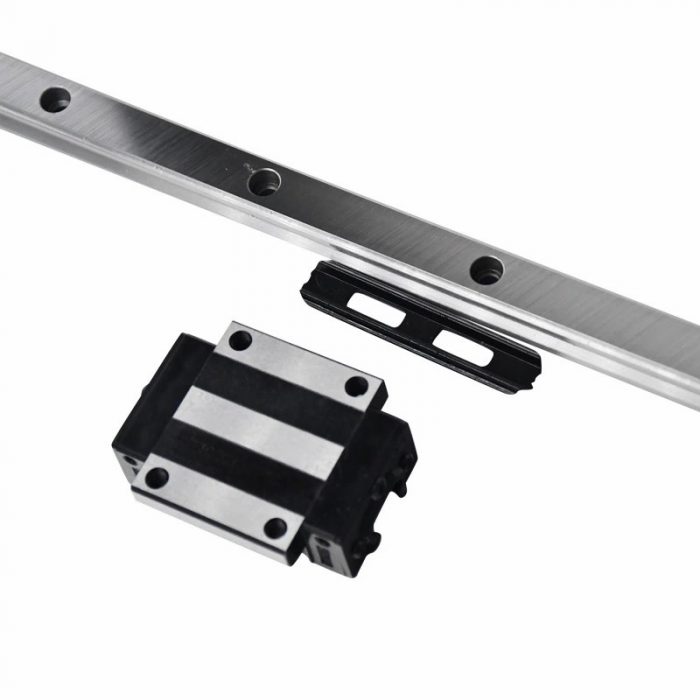

Because we do not sell enough of these ball bearing guides, we are selling the entire stock at a 70% discount. Below is the current stock and our most recent and already very low webshop prices. Rail carriage 600mm 46 sets €41.32 /pc. Rail carriage 800mm 48 sets €49.59 /pc Rail carriage 1000mm 46 sets €57.85 /pc. Rail carriage 1200mm 48 sets €66.12 /pc. Rail carriage 1400mm 14 sets €74.38 /pc. Rail carriage 1600mm 16 sets €82.64 /pc Rail carriage 1800mm 50 sets €107.44 /pc Rail trolley 2000mm 49 sets €115.70 /pc. Rail trolley 3000mm 1 set €157.02 /pc. Car Loose 224 pcs. €20.66 /pc. Total webshop price = €28,305.62 excl. VAT – 70% discount = €8,491.69 This batch cannot be returned. What is a ball recirculation guide? A ball recirculation guide is a linear profile guide in which a carriage moves silently over a rail with the aid of balls. This movement is extremely precise and without play. Compared to traditional sliding guides, the friction is 50x smaller. Because profile rail guides involve forced guidance of the carriage on the rail, this construction can absorb forces from multiple sides, making the combination applicable both vertically and horizontally. This guide can even be used upside down. BRASOM: your drawer guide specialist! Our customer service is at your service if you have any questions after reading this information. We think it is important that you are sure that you order the right product. BRASOM ball bearing guide We supply each rail with one carriage as standard. This is already slid onto the rail. Never simply slide a carriage off a rail. The balls fall out and pushing them back is easier said than done. If it is really necessary to remove the carriage, you can place a second rail, lengthwise, against the rail with carriage and slide the carriage from one rail to the other. You can also use a plastic attachment. Every carriage that can be ordered separately is equipped with this. You can slide a carriage from rail to attachment and vice versa. We cannot supply the attachments separately. Our ball bearing guides are equipped with four rows of balls, which are positioned in relation to the rail in such a way that the combination can absorb forces and moments from all sides. The size of these forces and moments is shown schematically in the last image. We have made a distinction between one carriage and two carriages placed against each other on rail. Furthermore, all relevant dimensions are drawn. Our carriages are equipped with a flange, which gives them long threaded holes and a large bearing surface. In addition, each carriage is equipped with seals (oil seals) that slide over the rail in front of the carriage and prevent internal contamination. Each carriage also has a grease nipple. The carriages are supplied greased and generally require little to no maintenance. Make sure that the seals are not damaged. So do not let them serve as the end stop of a movement.
